Water Softener Installation in Central New Jersey

Start with the hardness number, not the sales pitch

Whether a softener earns its spot in your basement depends on one figure: how hard your water is. Hardness is reported in two units. Utilities usually print parts per million (ppm, measured as calcium carbonate), while softener manufacturers size equipment in grains per gallon (gpg). Divide ppm by 17.1 to convert, so 171 ppm works out to 10 gpg.

Central Jersey gives you a wide spread of answers. Middlesex Water, which serves Woodbridge and much of the surrounding area, reported an average of 157 ppm in 2025, about 9.2 gpg, with readings anywhere from 90 to 308 ppm depending on which source reached the tap (Middlesex Water annual water quality report, 2025 data). That is moderately hard on average and quite hard at the top of the range. Over in the former Gordon's Corner Water Company area around Manalapan, the 2025 report listed 33 to 60 ppm, roughly 2 to 3.5 gpg. Water that soft usually does not need a softener at all.

So the first step is reading your own utility's report, or testing a well, and seeing where you land. If your number sits low, a softener mostly adds salt bags and upkeep. If it sits high, a properly sized unit will cut scale on heater elements, showerheads, and dishwasher racks.

Sizing a softener to the house you actually live in

Softeners are rated by grain capacity: how many grains of hardness the resin can hold before it has to regenerate. The rough math an installer runs looks like this. Multiply the people in the home by daily water use per person (many sizing worksheets assume around 75 gallons), then multiply that by your hardness in gpg. The result is the grains removed per day.

A worked example: four people at 75 gallons each is 300 gallons a day. At 9.2 gpg, that comes to about 2,760 grains daily. Most installers aim for a unit that regenerates roughly once a week, so they look for something with usable capacity in the 20,000 grain range or a little above, then adjust for salt efficiency settings.

Hardness is not the only input. Dissolved iron uses up resin capacity too, so homes on a private well often get a compensated hardness figure that adds a few grains for every ppm of iron. Flow rate also matters: a unit that is undersized for the plumbing can cause a noticeable pressure drop when two showers run at once. A good consultation covers both numbers rather than just picking a tank by the size of the house.

The parts that make up a whole house softener

Every conventional ion exchange softener has the same basic layout, and knowing the pieces helps when you compare quotes.

Resin tank

A tall fiberglass or composite cylinder filled with small polystyrene resin beads. The beads hold sodium or potassium ions and trade them for hardness as water passes through. Tank size sets grain capacity.

Brine tank

The shorter tank where salt goes. Water dissolves the salt into brine, which the system draws into the resin tank during regeneration to flush hardness off the beads and recharge them.

Control valve

The head on top of the resin tank runs the regeneration cycle. A timed valve regenerates on a set schedule no matter how much water you used. A metered (demand-initiated) valve counts gallons and regenerates only when capacity runs low, which typically uses less salt and less water. Most new installs use metered valves for that reason.

Bypass valve

A small valve assembly that lets you route water around the softener during service or when filling a pool, without shutting off water to the house.

Where the softener goes in your plumbing

Placement follows a logic. The softener sits on the main line after the water meter (or after the pressure tank on a well), and ahead of the water heater so hot water lines get the benefit. Outdoor hose bibs are commonly left on hard water, since there is no reason to spend salt on the lawn. Some homeowners also keep one cold kitchen line unsoftened for drinking.

On a private well, order matters even more. Sediment filtration, pH correction, and iron or manganese treatment generally come before the softener so the resin is not fouled. Disinfection such as a UV unit typically sits at the end of the line. Our page on well water treatment walks through that sequence.

Space and a level floor near the main line, a standard electrical outlet for the valve, and room to lift salt bags into the brine tank are the practical checks. Basements and utility rooms are the usual homes for the equipment. Garages work in many cases but freezing has to be considered.

Drain lines, the air gap, and the salt question

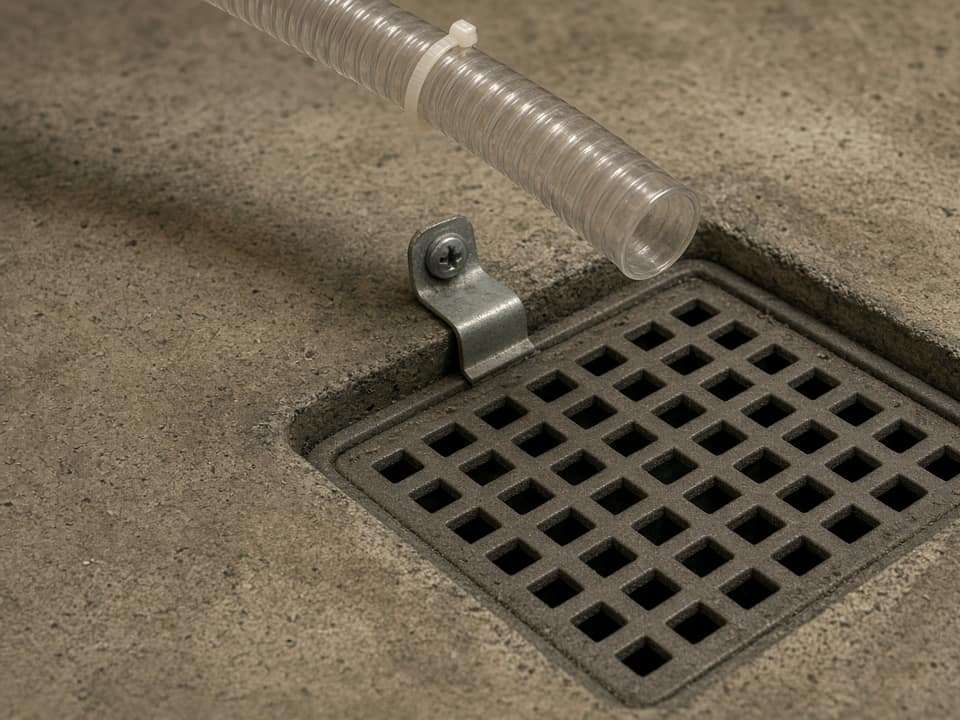

During regeneration a softener discharges brine and rinse water, so it needs a place to drain: a floor drain, a laundry standpipe, or a sump in some homes. That drain connection should have an air gap, a physical break between the softener's drain hose and the drain itself, so wastewater can never siphon back into the drinking water. The brine tank's overflow fitting also needs its own route to a drain. A missing air gap is one of the more common shortcuts to watch for.

Softened water picks up some sodium. The amount depends on how hard the water was to begin with, so harder water means more added sodium. For context, New Jersey American Water's Raritan System reported sodium of 32 to 99 ppm in its own water in 2025, against a recommended upper limit of 50 ppm, before any softener is involved. If someone in the house is on a sodium-restricted diet, two common options are running potassium chloride in the brine tank instead of salt, or adding a reverse osmosis system at the kitchen tap for drinking and cooking.

If a drain is not available or brine discharge is a concern in your building, a salt-free conditioner is a different technology with different limits, and it is worth reading about before you decide.

Who is allowed to install it in New Jersey

New Jersey treats installing or disconnecting water softening and filtration equipment as plumbing work. Under N.J.A.C. 13:32-1.4, that work may be done by a licensed master plumber, an authorized plumbing contractor, or W-2 employees working under a master plumber's supervision. The one exception is a homeowner doing plumbing in their own single-family dwelling.

In practice that means the installer who comes out after your consultation should be properly licensed for the job, and permits, where your local construction office requires them, are typically handled by that installer. It is reasonable to ask for the license number and check it before work starts. Central Jersey Water is a referral front brand and does not do installations itself; we pass your request to an independent local water treatment provider who handles the consultation and any work you agree to.

What installation typically costs

National cost guides give a rough frame. HomeGuide's published national range for a water softener system is $1,200 to $3,800 with installation (checked October 2026). That is a national figure, not a local quote. Capacity, valve type, how much repiping the main line needs, and whether a drain is close by all move the number for a specific home. Ask any installer to break out equipment, labor, and permit costs separately so quotes are easy to compare.

How your free consultation works

You fill out the form with your ZIP, your water source, and anything you have noticed: white crust on faucets, spotty glasses, a short-lived water heater. An independent local water treatment provider reaches out, looks at your utility report or tests the water, checks the spot where equipment would go, and tells you whether a softener makes sense and at what size. If your water is already soft, a good provider will say so. There is no charge for the consultation and no obligation to buy anything.
